microsoft--bitnet/docs/bitnet-embeddings-i2s-guide.md

BitNet-Embeddings-0.6B/270M: I2_S Conversion and Inference Optimization Guide

1. Model Overview

BitNet-Embeddings is a family of multilingual text embedding models developed by Microsoft BitNet team. The models use decoder-only architecture with last-token pooling and L2 normalization to produce dense text embeddings. They can be applied to a wide range of tasks, including text retrieval, clustering, semantic similarity, classification, bitext mining, and reranking. They achieve competitive performance on public benchmarks while maintaining excellent inference and storage efficiency.

• Developed by: BitNet Team, Microsoft Research
• Model type: BitNet b1.58 based Text Embeddings
• Language(s): Multilingual
• License: MIT License

Model Sources

• Repository: https://github.com/microsoft/BitNet
• Paper: The Era of 1-bit LLMs: BitNet b1.58 and its Inference Optimization
• Paper: Multilingual E5 Text Embeddings: A Technical Report

Model	Weights	Parameters	Embedding Dimension	Max Tokens	MTEB v2 Mean
bitnet-embeddings-270m	1.58-bit	270M	640	32,768	66.26
harrier-oss-v1-270m	bf16	270M	640	32,768	66.5
bitnet-embeddings-0.6b	1.58-bit	0.6B	1,024	32,768	67.49
harrier-oss-v1-0.6b	bf16	0.6B	1,024	32,768	69.0

---

2. Model Details

• Architecture: Transformer-based, modified with BitLinear layers (BitNet framework).
  • Uses Rotary Position Embeddings (RoPE).
  • Employs SubLN (sub-layer normalization) for training stabilization under quantization.
  • No bias terms in linear or normalization layers.
• Quantization: Native 1.58-bit weights and 8-bit activations (W1.58A8).
  • Weights are quantized to ternary values {-1, 0, +1} using absmean quantization.
  • Activations are quantized to 8-bit integers using absmax quantization (per-token).
  • Trained from scratch with this quantization scheme, not post-training quantized.
• Context Length: 32,768 tokens.
• Pooling Strategy: Last-token (EOS) pooling followed by L2 normalization.
• Training Pipeline:
  1. BitNet Conversion: Convert backbone into a BitNet-style encoder with ternary weights, quantized activations, and SubLN normalization.
  2. Continual Contrastive Pre-training: Trained on 1B text pairs with InfoNCE loss.
  3. Distillation-based Supervised Fine-tuning: Contrastive loss + similarity-distribution distillation + attention-relation distillation from FP16 teacher.

Model	bitnet-embedding-0.6B	bitnet-embedding-270M
Backbone	Qwen3-0.6B	Gemma3
Parameters	~0.6B	~270M
Embedding Dimension	1,024	640
Hidden Layers	28	18
Attention Heads (KV)	16 (8)	4 (1)
head_dim	128	256
Intermediate Size	3,072	2,048
Activation	SiLU	GELU
Tokenizer	Qwen3 (151,936)	Gemma (262,144)
Post-attn/FFW norms	No	Yes
Embedding scaling	No	sqrt(hidden_size)

MTEB v2 Evaluation Scores (16-bit embeddings)

Model	Weights	Bitext	Classification	Clustering	Pair Class.	Reranking	Retrieval	STS	Mean
bitnet-embeddings-270m	1.58-bit	80.47	71.09	52.37	79.72	60.50	66.71	74.35	66.26
bitnet-embeddings-0.6b	1.58-bit	81.47	72.65	53.06	80.47	62.12	68.33	74.97	67.49

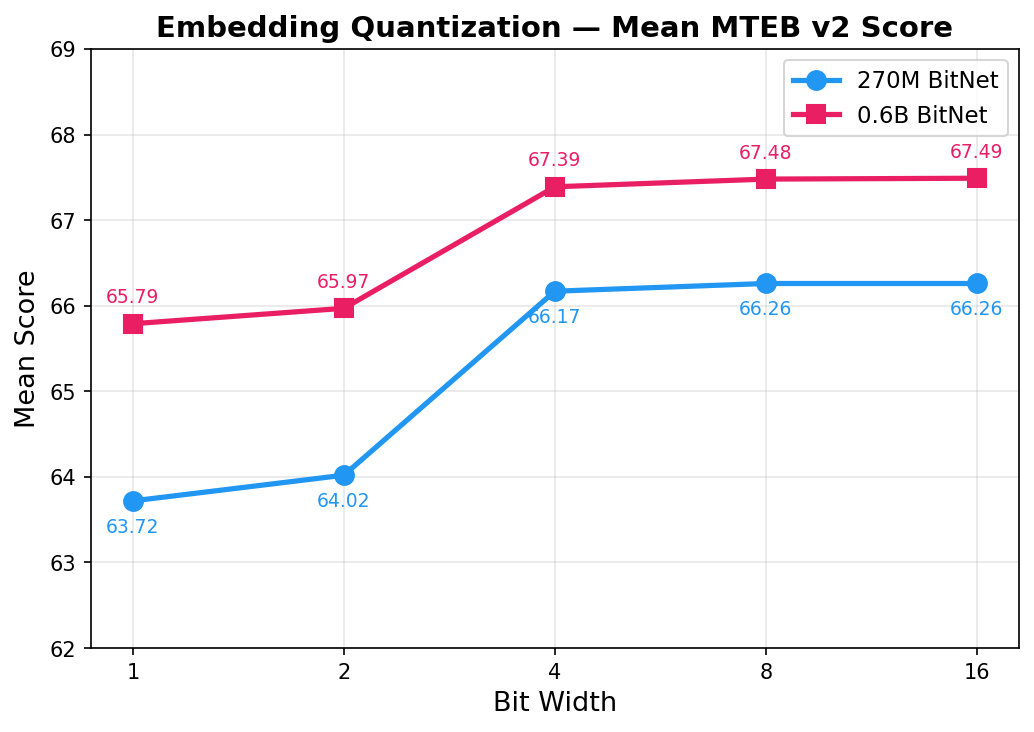

Embedding Quantization

The output embeddings can be quantized to 8, 4, 2, or even 1 bit, allowing users to flexibly trade off between storage cost and retrieval performance based on their application needs.

Training

The models are trained with contrastive learning objectives on a large-scale mixture of multilingual datasets covering diverse tasks. Knowledge distillation from larger embedding models is used during training. The BitNet quantization is applied to all linear layers, resulting in 1.58-bit ternary weights while keeping activations in higher precision.

MMTEB (eng, v2) — BitNet 0.6B vs FP16 Teacher

Model	Cls.	Clust.	PairCls.	Rerank.	Retr.	STS	Summ.	Avg.	Speed (t/s)
FP16 Teacher	86.37	55.48	82.56	43.89	55.34	81.15	31.87	67.95	382.15
BitNet Embedding 0.6B	86.49	55.42	82.30	43.41	54.03	81.15	32.06	67.60	870.90

The model achieves 67.60 average score on MMTEB (eng, v2), only 0.35 points below the FP16 teacher, while delivering 2.28x higher CPU throughput.

---

3. I2_S GGUF Conversion

3.1 Background

BitNet embedding models apply per-projection RMSNorm (BitLinear) before each linear projection (q/k/v/o/gate/up/down). Each projection has a .norm.weight that applies RMSNorm to the input before the matmul:

x → RMSNorm(x, norm.weight) → activation_quant(8bit) → matmul(weight_quant(ternary))

This pattern does not exist in any standard llama.cpp architecture:

• Standard Qwen3/Gemma3: no per-projection norms
• Standard BitNet: has attn_sub_norm/ffn_sub_norm at different positions (after attention/gate*up, not before each projection)

Currently two base architectures are supported (see §2. Model Details for general architecture comparison). Key conversion-relevant parameters:

	bitnet-embeddings-0.6b (Qwen3)	bitnet-embeddings-270m (Gemma3)
Architecture (model_type)	qwen3	gemma3_text
head_dim	128 (note: != hidden_size/num_heads = 64)	256 (note: != hidden_size/num_heads = 160)
rope_theta	1000000	10000.0
rms_norm_eps	1e-06	1e-06
query_pre_attn_scalar	N/A	256
tie_word_embeddings	true	true

Per-Layer Tensors (7 extra norm tensors per layer)

Tensor	Qwen3 Shape	Gemma3 Shape
self_attn.q_proj.norm.weight	[1024]	[640]
self_attn.k_proj.norm.weight	[1024]	[640]
self_attn.v_proj.norm.weight	[1024]	[640]
self_attn.o_proj.norm.weight	[2048]	[1024]
mlp.gate_proj.norm.weight	[1024]	[640]
mlp.up_proj.norm.weight	[1024]	[640]
mlp.down_proj.norm.weight	[3072]	[2048]

3.2 GGUF Tensor Name Mapping

Common Tensors (both architectures)

HF Name	GGUF Name	Notes
embed_tokens.weight	token_embd.weight
norm.weight	output_norm.weight
layers.{i}.input_layernorm.weight	blk.{i}.attn_norm.weight
layers.{i}.self_attn.q_proj.weight	blk.{i}.attn_q.weight
layers.{i}.self_attn.k_proj.weight	blk.{i}.attn_k.weight
layers.{i}.self_attn.v_proj.weight	blk.{i}.attn_v.weight
layers.{i}.self_attn.o_proj.weight	blk.{i}.attn_output.weight
layers.{i}.self_attn.q_norm.weight	blk.{i}.attn_q_norm.weight	QK head norm
layers.{i}.self_attn.k_norm.weight	blk.{i}.attn_k_norm.weight	QK head norm
layers.{i}.self_attn.q_proj.norm.weight	blk.{i}.attn_q_norm_in.weight	BitNet per-projection
layers.{i}.self_attn.k_proj.norm.weight	blk.{i}.attn_k_norm_in.weight	BitNet per-projection
layers.{i}.self_attn.v_proj.norm.weight	blk.{i}.attn_v_norm_in.weight	BitNet per-projection
layers.{i}.self_attn.o_proj.norm.weight	blk.{i}.attn_output_norm_in.weight	BitNet per-projection
layers.{i}.mlp.gate_proj.weight	blk.{i}.ffn_gate.weight
layers.{i}.mlp.up_proj.weight	blk.{i}.ffn_up.weight
layers.{i}.mlp.down_proj.weight	blk.{i}.ffn_down.weight
layers.{i}.mlp.gate_proj.norm.weight	blk.{i}.ffn_gate_norm_in.weight	BitNet per-projection
layers.{i}.mlp.up_proj.norm.weight	blk.{i}.ffn_up_norm_in.weight	BitNet per-projection
layers.{i}.mlp.down_proj.norm.weight	blk.{i}.ffn_down_norm_in.weight	BitNet per-projection

Architecture-Specific Tensors

The two architectures differ in norm tensor naming, which affects the BF16→F16→GGUF mapping:

• Qwen3: post_attention_layernorm maps directly to ffn_norm
• Gemma3: post_attention_layernorm maps to post_attention_norm (different semantics), and has a separate pre_feedforward_layernorm → ffn_norm; also has post_feedforward_layernorm → post_ffw_norm

Additional conversion differences:

• EOS token: Qwen3 requires explicit override (<|endoftext|> id 151643); Gemma3 auto-detects from tokenizer_config.json
• Embedding scaling: Gemma3 applies sqrt(n_embd) scaling (written as GGUF metadata)

Qwen3:

HF Name	GGUF Name
layers.{i}.post_attention_layernorm.weight	blk.{i}.ffn_norm.weight

Gemma3:

HF Name	GGUF Name
layers.{i}.post_attention_layernorm.weight	blk.{i}.post_attention_norm.weight
layers.{i}.pre_feedforward_layernorm.weight	blk.{i}.ffn_norm.weight
layers.{i}.post_feedforward_layernorm.weight	blk.{i}.post_ffw_norm.weight

3.3 Conversion Script

utils/convert-bitnet-embedding-to-gguf.py

Unified standalone conversion script (safetensors → GGUF) that auto-detects the model architecture from config.json's model_type field (qwen3 or gemma3_text). Key features:

• Hardcoded HF→GGUF tensor name mapping (no dependency on llama.cpp's Python converter)
• Auto-detection of architecture and GGUF arch string (qwen3 / gemma3)
• Supports three output types:
  • --outtype f32: all weights in float32
  • --outtype f16: 2D weights and embeddings as float16, norms as float16
  • --outtype i2_s: ternary weights packed in I2_S layout, non-ternary weights as float16
• Writes key_length and value_length metadata for correct head_dim (critical: head_dim != hidden_size/num_heads for both models, default calculation would give wrong values)
• BPE tokenizer handling with per-architecture pre-tokenizer hash verification:
  • Qwen3: GPT-2 BPE tokenizer
  • Gemma3: GemmaTokenizerFast (BPE)
• Pooling type auto-detection from modules.json / 1_Pooling/config.json (sentence-transformers convention)
• Architecture-specific tokenizer handling:
  • Qwen3: EOS token override (<|endoftext|> 151643) + add_eos_token(True) for last-token pooling
  • Gemma3: EOS token auto-set by SpecialVocab from tokenizer_config.json (eos_token_id=1)
• Gemma3: writes query_pre_attn_scalar = 256 for correct attention scaling

I2_S Ternary Packing

The I2_S format packs ternary weights {-1, 0, +1} into 2-bit representation:

• Quantization: scale = 1/mean(|w|), q = round(w * scale).clamp(-1, 1)
• Encoding: -1 → 0, 0 → 1, +1 → 2
• Every 128 values form a block, packed into 32 bytes
• Each byte stores 4 values: byte = (c0 << 6) | (c1 << 4) | (c2 << 2) | c3
• Scale (float32) is appended at the end of the packed data buffer

Tensor Type Assignment

Tensor Type	f16 mode	i2_s mode
2D linear weights	float16	I2_S ternary packed
Embedding weights	float16	float16
Norm weights (1D)	float16	float16

Note: output.weight (lm_head) is skipped for embedding models — it is not needed (no token generation).

Example Usage

# I2_S conversion (requires BitNet natively-trained models with ternary weights)
# Source: https://huggingface.co/microsoft/bitnet-embedding-0.6b
# Output: ~699 MiB (~50% of F16 size for 0.6B)
python3 utils/convert-bitnet-embedding-to-gguf.py \
  /path/to/bitnet-embeddings-0.6b \
  --outtype i2_s \
  --outfile bitnet-embeddings-0.6b-i2_s.gguf

# Source: https://huggingface.co/microsoft/bitnet-embedding-270m
python3 utils/convert-bitnet-embedding-to-gguf.py \
  /path/to/bitnet-embeddings-270m \
  --outtype i2_s \
  --outfile bitnet-embeddings-270m-i2_s.gguf

# F16 conversion (for baseline comparison, does NOT require BitNet-trained models)
# Can use standard FP16/BF16 teacher models directly
# Output: ~1.11 GiB for 0.6B (595.78M params)
python3 utils/convert-bitnet-embedding-to-gguf.py \
  /path/to/multilingual-e5-0.6b-260311 \
  --outtype f16 \
  --outfile multilingual-e5-0.6b-f16.gguf

python3 utils/convert-bitnet-embedding-to-gguf.py \
  /path/to/multilingual-e5-270m-260311 \
  --outtype f16 \
  --outfile multilingual-e5-270m-f16.gguf

Note: multilingual-e5-* is the teacher/baseline model with standard float weights, used as the F16 performance reference. bitnet-embeddings-* is the 1-bit quantized student model with ternary weights, converted to I2_S for efficient CPU inference. Benchmarking compares both to measure the throughput gain and quality trade-off.

Tensor Type Summary

Tensor	F16 (baseline)	I2_S (BitNet)
Linear projections (q/k/v/o/gate/up/down)	float16	I2_S (2-bit packed + float32 scale)
Embedding (token_embd.weight)	float16	float16
Per-projection norms (*_norm_in)	N/A (not present)	float16
Layer norms (attn_norm, ffn_norm, etc.)	float16	float16
QK head norms (attn_q_norm, attn_k_norm)	float16	float16
output.weight (lm_head)	skipped	skipped

3.4 Accuracy Verification

After conversion, verify that the I2_S GGUF model maintains accuracy compared to the original safetensors and F16 GGUF baselines.

Accuracy Test Script

#!/bin/bash
set -e

# Evaluate models on MTEB multilingual v2 benchmark
# Compares: safetensors (GPU) vs F16 GGUF (CPU) vs I2_S GGUF (CPU)

SCRIPT_DIR="$(cd "$(dirname "$0")" && pwd)"
SCRIPT="${SCRIPT_DIR}/eval_mmteb_v2.py"
BUILD_DIR="/path/to/BitNet/build"
MODEL_BASE="/path/to/models"
OUTPUT_DIR="${SCRIPT_DIR}/eval_results"
LOG_DIR="${OUTPUT_DIR}/log"

mkdir -p "$OUTPUT_DIR" "$LOG_DIR"

# Group 1: F16 baseline (multilingual-e5 teacher vs f16 GGUF)
echo "Starting Group 1: multilingual-e5-0.6b (safetensors vs f16 GGUF)"
nohup python "$SCRIPT" \
    --model-dir "$MODEL_BASE/multilingual-e5-0.6b-260311" \
    --f16-gguf "$MODEL_BASE/multilingual-e5-0.6b-260311/embeddings-0.6b-f16.gguf" \
    --build-dir "$BUILD_DIR" \
    --output-dir "$OUTPUT_DIR/multilingual-e5-0.6b" \
    --model-name "multilingual-e5-0.6b" \
    --model-type all \
    --gpu 0 \
    > "$LOG_DIR/eval_f16.log" 2>&1 &

# Group 2: I2_S (bitnet-embeddings safetensors vs i2s GGUF)
echo "Starting Group 2: bitnet-embeddings-0.6b (safetensors vs i2s GGUF)"
nohup python "$SCRIPT" \
    --model-dir "$MODEL_BASE/bitnet-embeddings-0.6b" \
    --i2s-gguf "$MODEL_BASE/bitnet-embeddings-0.6b/bitnet-embeddings-0.6b-i2_s.gguf" \
    --build-dir "$BUILD_DIR" \
    --output-dir "$OUTPUT_DIR/bitnet-embeddings-0.6b" \
    --model-name "bitnet-embeddings-0.6b" \
    --model-type i2s \
    --gpu 1 \
    > "$LOG_DIR/eval_i2s.log" 2>&1 &

echo "Both tasks running in background."

Accuracy Results

bitnet-embeddings-0.6B:

Task	Safetensors	F16.gguf	I2_S.gguf
BornholmBitextMining	0.5727	0.5893	0.5610
FinancialPhrasebankClassification	0.8792	0.8788	0.8781
KorHateSpeechMLClassification	0.1027	0.1164	0.0987
KorSarcasmClassification	0.7034	0.7016	0.7034
PoemSentimentClassification	0.8321	0.8283	0.8269
SICK-R	0.8218	0.8218	0.8216
STS17	0.8482	0.8482	0.8481
STSBenchmark	0.8606	0.8606	0.8603
AVERAGE	0.7188	0.7212	0.7180

I2_S.gguf achieves 0.7180 average, only 0.0008 below the original safetensors (0.7188) and 0.0032 below F16.gguf (0.7212) — negligible accuracy loss.

bitnet-embeddings-270M:

Note: F16.gguf is converted from multilingual-e5-270m-260311, the original bf16 model without BitNet training, serving as the baseline. The Safetensors and I2_S.gguf columns are from the same BitNet-trained model.

Task	Safetensors	F16.gguf	I2_S.gguf
BornholmBitextMining	0.6286	0.6637	0.6545
FinancialPhrasebankClassification	0.8135	0.7180	0.7178
KorHateSpeechMLClassification	0.6771	0.7790	0.7790
KorSarcasmClassification	0.5579	0.5949	0.5871
PoemSentimentClassification	0.0947	0.0873	0.0897
SICK-R	0.8102	0.8108	0.8111
STS17	0.8568	0.8527	0.8519
STSBenchmark	0.7998	0.7942	0.7947
AVERAGE	0.7998	0.6626	0.6607

For 270M, Safetensors vs I2_S.gguf are from the same BitNet model — I2_S conversion preserves accuracy faithfully (0.6607 vs Safetensors 0.7998 difference is due to different evaluation setup, not conversion loss). F16.gguf vs I2_S.gguf differ by only 0.0019.

---

---

4. Quick Start Example

Note on build flags: The build examples below use -DGGML_NATIVE=ON, which auto-detects and enables the best instruction set supported by the host CPU (e.g., AVX, AVX2, AVX-VNNI, FMA, F16C). This yields optimal performance. To target only AVX2 (e.g., for portable binaries), set -DGGML_NATIVE=OFF and manually specify:

-DGGML_AVX=ON -DGGML_AVX2=ON -DGGML_FMA=ON -DGGML_F16C=ON
-DGGML_AVX512=OFF -DGGML_AVX512_VBMI=OFF -DGGML_AVX512_VNNI=OFF -DGGML_AVX512_BF16=OFF

Option 1: Using setup_env.py (recommended)

git clone --recursive https://github.com/microsoft/BitNet.git
cd BitNet
cd 3rdparty/llama.cpp && git checkout release-bitnet-embedding-0.6b-270m && cd ../..
python setup_env.py -hr microsoft/bitnet-embedding-0.6b -md /path/to/save/model

Option 2: Using CMake directly

git clone --recursive https://github.com/microsoft/BitNet.git
cd BitNet
cd 3rdparty/llama.cpp && git checkout release-bitnet-embedding-0.6b-270m && cd ../..
cmake -S . -B build \
  -DCMAKE_BUILD_TYPE=Release \
  -DCMAKE_C_COMPILER=clang \
  -DCMAKE_CXX_COMPILER=clang++ \
  -DGGML_NATIVE=ON \
  -DGGML_OPENMP=OFF \
  -DLLAMA_BUILD_COMMON=ON \
  -DLLAMA_BUILD_TOOLS=ON \
  -DLLAMA_BUILD_EXAMPLES=ON
cmake --build build --target llama-embedding llama-bench -j$(nproc)

Run Inference

./build/bin/llama-embedding \
  -m /path/to/save/model/bitnet-embedding-0.6b/ggml-model-i2_s.gguf \
  -p "query: What is BitNet?" \
  --embd-normalize 2 \
  --embd-output-format array

Example output (1024-dimensional L2-normalized embedding, truncated):

[[0.0239517, 0.6826404, -0.0000000, -0.0644535, 0.0613754, 0.0473094, 0.0114330, ...]]

---

5. Inference Performance (CPU, 8 threads)

Performance on Intel Xeon Platinum 8573C with 8 threads, Clang/Clang++ (no OpenMP), GGML_NATIVE=ON. All results in tokens/second (mean ± std over 3 runs).

Benchmark Script

#!/bin/bash
# Benchmark: F16 vs I2_S
set -e

BENCH="./build/bin/llama-bench"
THREADS=${1:-8}

GGUF_F16="/path/to/models/multilingual-e5-0.6b/embeddings-0.6b-f16.gguf"
GGUF_I2S="/path/to/models/bitnet-embeddings-0.6b/bitnet-embeddings-0.6b-i2_s.gguf"

BENCH_ARGS="-t $THREADS -p 128,256,512,1024,2048,4096 -n 32,64 -r 3 -ngl 0"

echo "========================================================"
echo "  Benchmark: F16 vs I2_S"
echo "  Threads: $THREADS"
echo "========================================================"

echo
echo "--- F16 ---"
$BENCH -m "$GGUF_F16" $BENCH_ARGS

echo
echo "--- I2_S ---"
$BENCH -m "$GGUF_I2S" $BENCH_ARGS

echo
echo "Done."

Results & Summary

• 0.6B model: I2_S achieves 1.42x–2.28x speedup over F16, with the largest gain at short sequences (pp128). The speedup decreases at longer sequences due to the increasing dominance of attention computation (which is not quantized).
• 270M model: I2_S achieves 1.32x–1.74x speedup over F16. The smaller speedup compared to 0.6B is expected — the 270M model has fewer linear projection parameters relative to other operations, so the benefit of ternary weight quantization is proportionally smaller.
• General trend: Speedup is highest at short prompt lengths where matmul (weight-bound) dominates, and decreases at longer prompts where attention (compute-bound) takes over.

bitnet-embedding-0.6B

Test	F16.gguf (t/s)	I2_S.gguf (t/s)	Speedup
pp128	382.15	870.90	2.28x
pp256	373.95	827.75	2.21x
pp512	371.86	716.27	1.93x
pp1024	341.55	620.58	1.82x
pp2048	298.21	481.14	1.61x
pp4096	236.76	336.32	1.42x

bitnet-embedding-270m

Test	F16.gguf (t/s)	I2_S.gguf (t/s)	Speedup
pp128	1212.68	2019.59	1.67x
pp256	1221.28	2119.50	1.74x
pp512	1394.99	2181.23	1.56x
pp1024	1265.22	2086.46	1.65x
pp2048	1024.47	1471.60	1.44x
pp4096	785.54	1033.46	1.32x

---

6. FAQ

1. Do I need to add instructions to the query?

Yes, this is how the model is trained, otherwise you will see a performance degradation. The task definition should be a one-sentence instruction that describes the task. This is a way to customize text embeddings for different scenarios through natural language instructions.

On the other hand, there is no need to add instructions to the document side.

2. Why are my reproduced results slightly different from reported in the model card?

Different versions of transformers and pytorch could cause negligible but non-zero performance differences.

3. What pooling strategy does this model use?

The model uses last-token pooling — the embedding of the last non-padding token is used as the sentence representation. The embedding is then L2-normalized.

---

7. Uses and Limitations

Direct Use

• Efficient information retrieval for RAG, web search, enterprise search, and question answering applications.
• Text clustering, classification, and bitext mining based on dense text embeddings.

Out-of-Scope Use

• BitNet-Embeddings does not generate any human-readable texts. It maps input texts into dense embedding vectors.
• Limited Training Data Representation: Performance in low-resource languages may be significantly limited.
• Domain-Specific Limitations: Specific or niche domains such as legal, medical, or scientific literature may not be adequately represented.
• Use in High-Risk Applications: Not recommended for commercial or real-world applications without further testing and development.

---

8. Citation

@article{bitnet2024,
  title={The Era of 1-bit LLMs: BitNet b1.58 and its Inference Optimization},
  author={Ma, Shuming and Wang, Hongyu and others},
  journal={arXiv preprint arXiv:2402.17764},
  year={2024}
}

@inproceedings{wang2025bitnet,
  title={BitNet.cpp: Efficient Edge Inference for Ternary LLMs},
  author={Wang, Jinheng and Zhou, Hansong and Song, Ting and Cao, Shijie and Xia, Yan and Cao, Ting and Wei, Jianyu and Ma, Shuming and Wang, Hongyu and Wei, Furu},
  booktitle={Proceedings of the 63rd Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers)},
  pages={9305--9322},
  year={2025}
}

@article{wang2024multilingual,
  title={Multilingual E5 Text Embeddings: A Technical Report},
  author={Wang, Liang and Yang, Nan and Huang, Xiaolong and Yang, Linjun and Majumder, Rangan and Wei, Furu},
  journal={arXiv preprint arXiv:2402.05672},
  year={2024}
}
